Ambient Lighting Module Connector End View - C2301

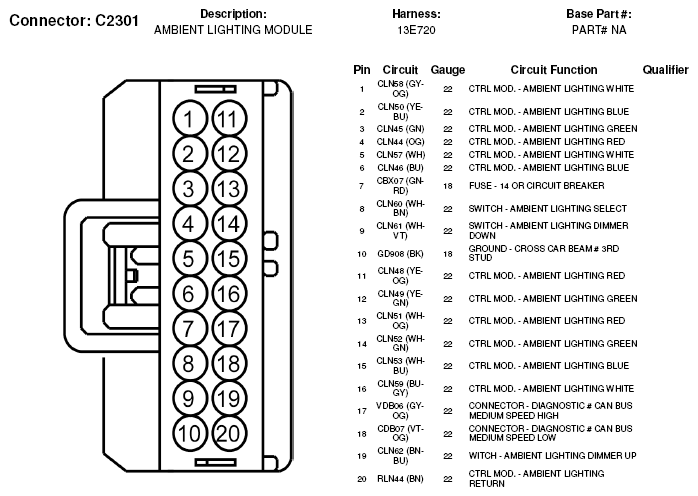

Fig 1: Ambient Lighting Module Connector End View (C2301)
G06353207Courtesy of FORD MOTOR CO.
