Ambient Lighting Module Connector End View - C3256

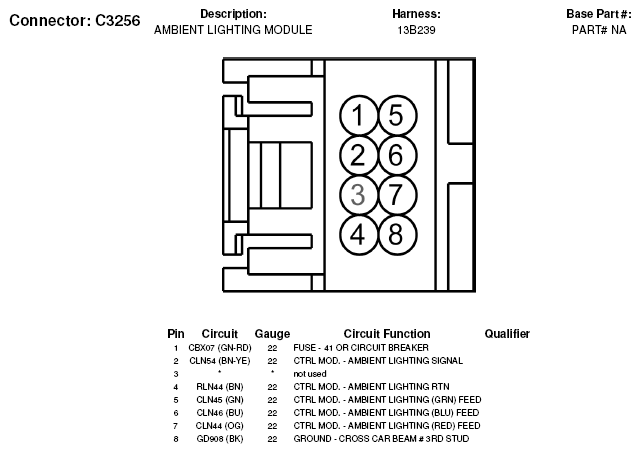

Fig 1: Ambient Lighting Module Connector End View (C3256)
G06353265Courtesy of FORD MOTOR CO.
