Driver Seat Module Connector End View - C3299A

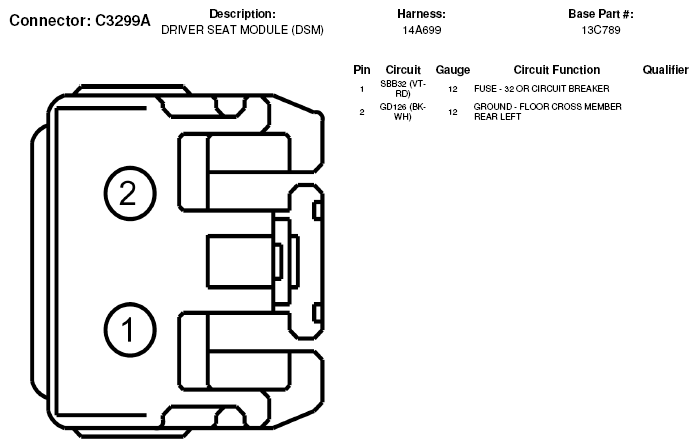

Fig 1: Driver Seat Module Connector End View (C3299A)
Courtesy of FORD MOTOR CO.
