Driver Side Front Seat Control Switch Connector End View - C3297

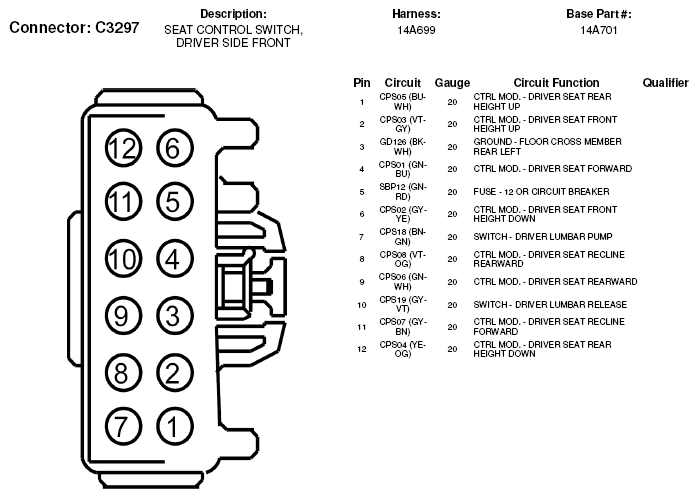

Fig 1: Driver Side Front Seat Control Switch Connector End View (C3297)
G06353269Courtesy of FORD MOTOR CO.
