Front Controls Interface Module (FCIM)




Front Controls Interface Module (FCIM) - Fusion, Milan

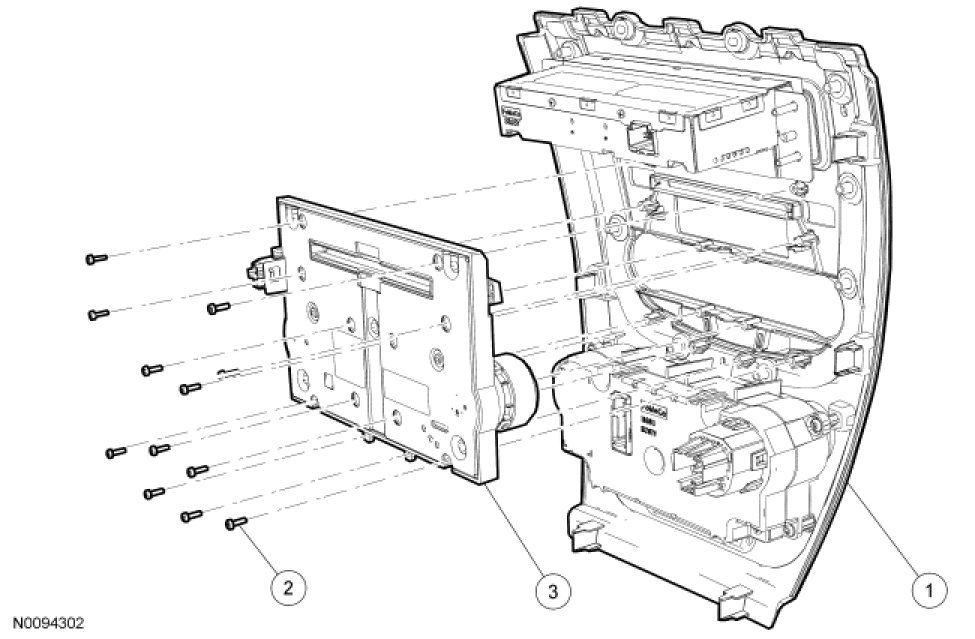

Removal and Installation

1. Remove the instrument panel center finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

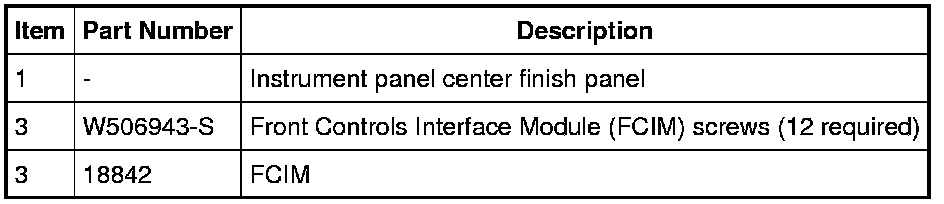

2. Remove the 12 screws and the FCIM.

3. To install, reverse the removal procedure.
