Master Window Control Switch Connector End View - C537B

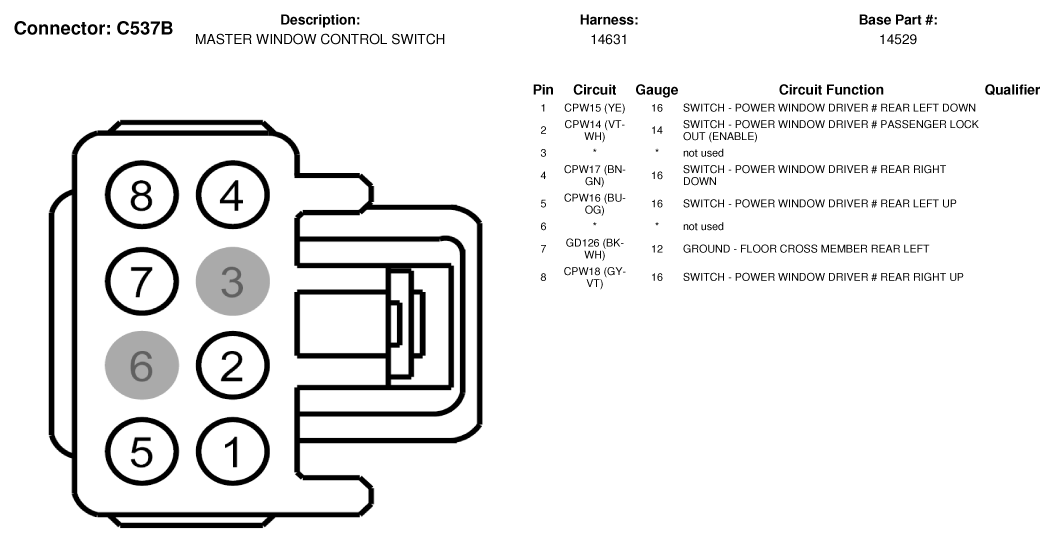

Fig 1: Master Window Control Switch Connector End View (C537B)
G07335671Courtesy of FORD MOTOR CO.
