Driver Side Front Seat Control Switch Connector End View - C360

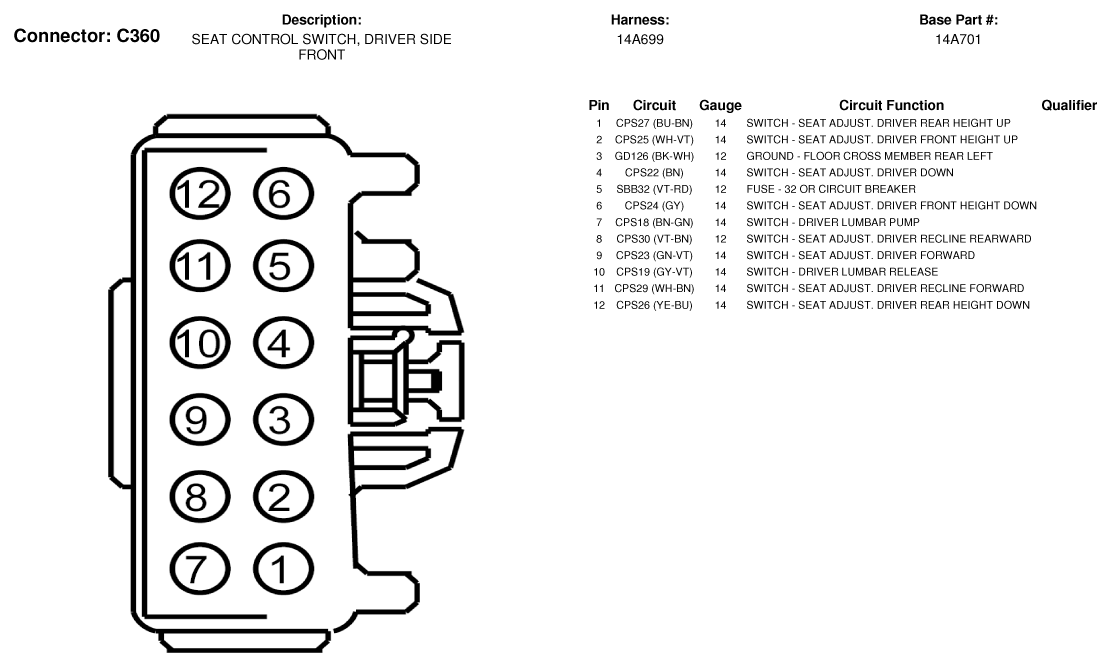

Fig 1: Driver Side Front Seat Control Switch Connector End View (C360)
G07335620Courtesy of FORD MOTOR CO.
