Mercury
>>
2011
>>
Milan FWD L4-2.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Spark Plug
>>
Service and Repair
>>
Engine Ignition Components - Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

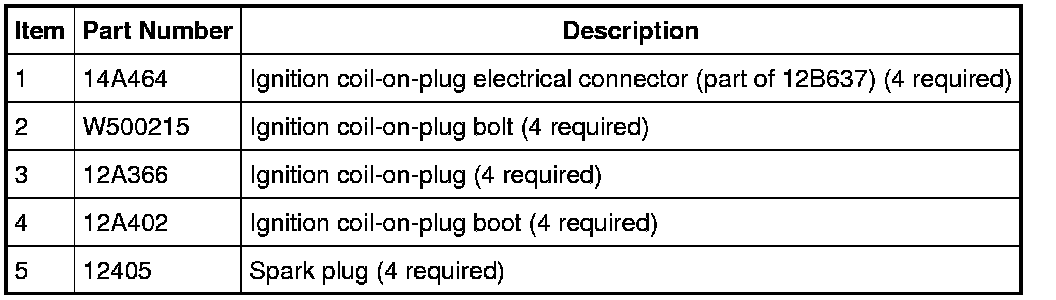

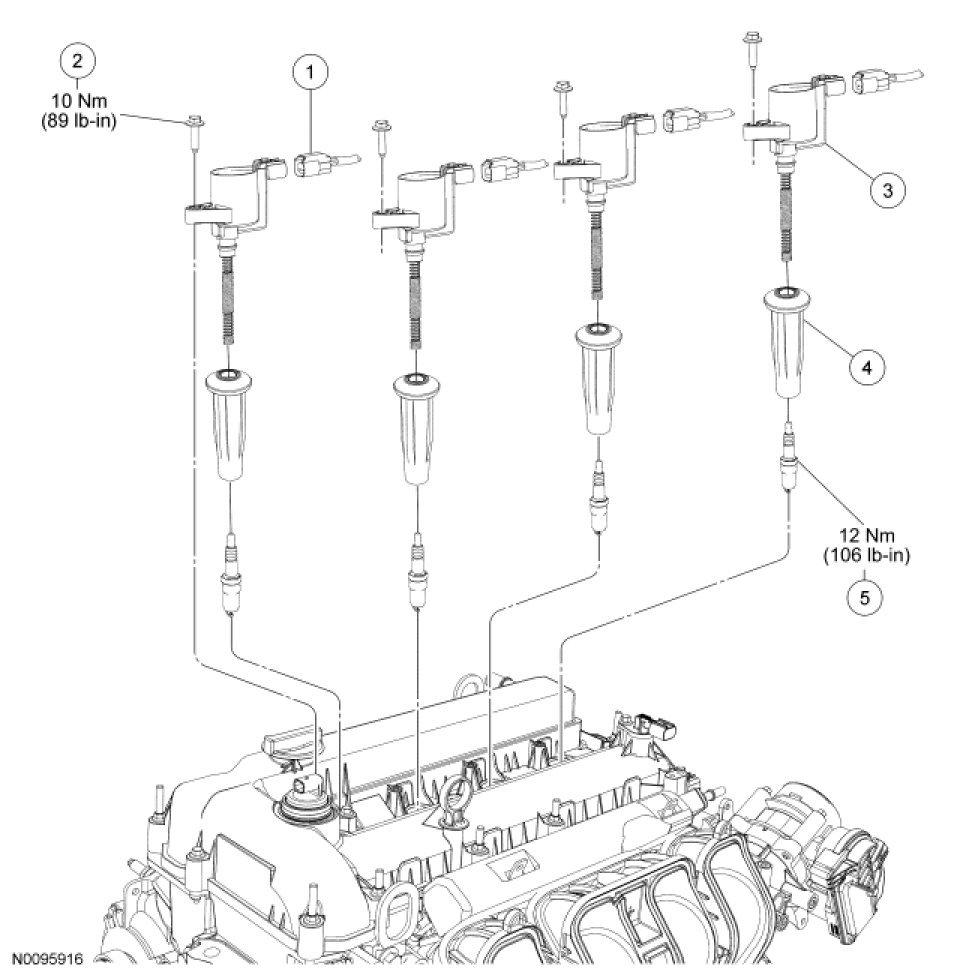

Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View
