Control Units

CONTROL UNITS LOCATION

Component Location

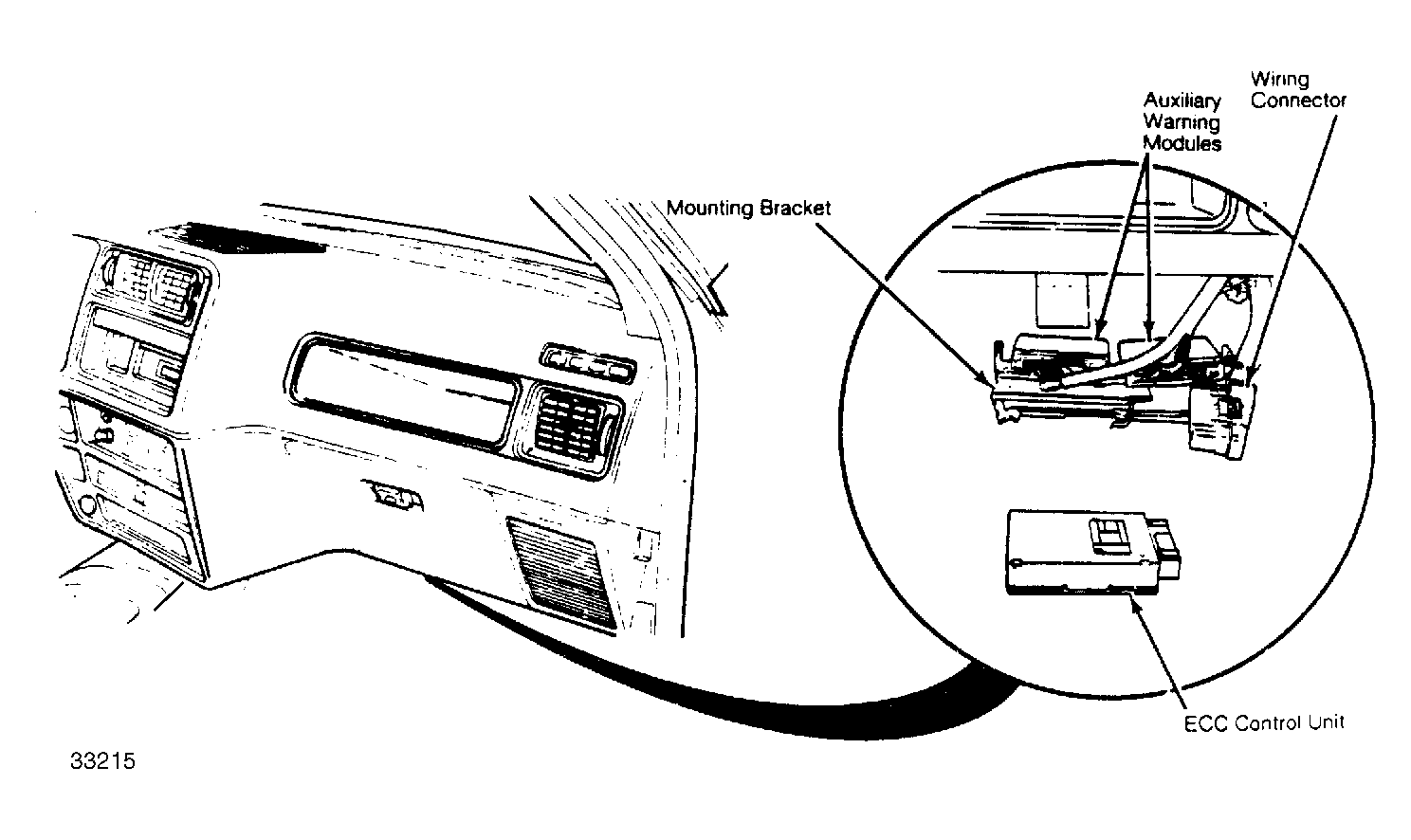

Auxiliary Warning Modules In passenger compartment, under right side cowl vent. See Figure .
EEC Control Unit In passenger compartment, under right side cowl vent. See Figure .
