Push Button Functions

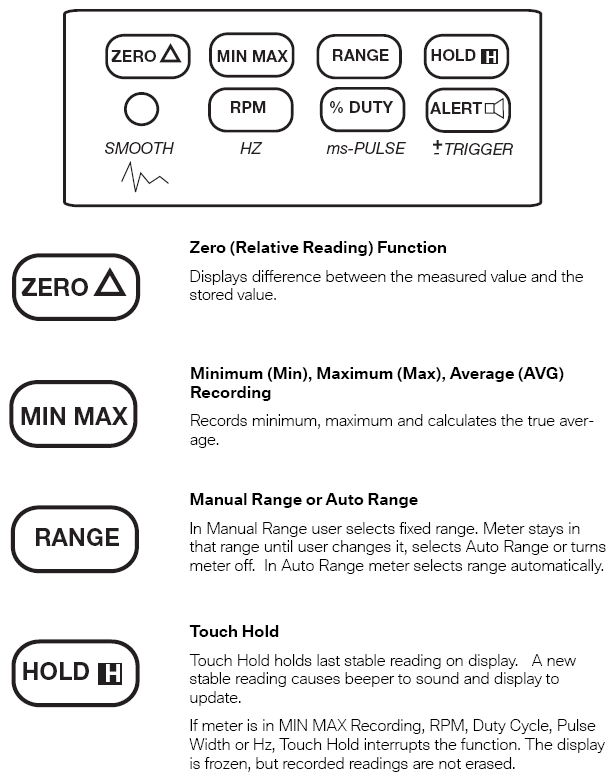

Fig 1: Push Button Function (1 Of 2)
G04730652Courtesy of BMW OF NORTH AMERICA, INC.

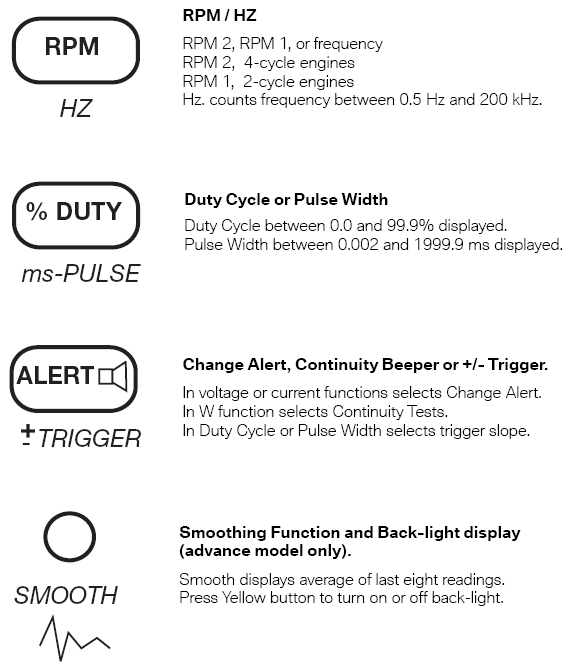

Fig 2: Push Button Function (2 Of 2)
G04730653Courtesy of BMW OF NORTH AMERICA, INC.
