Timing Component Alignment Marks: Locations

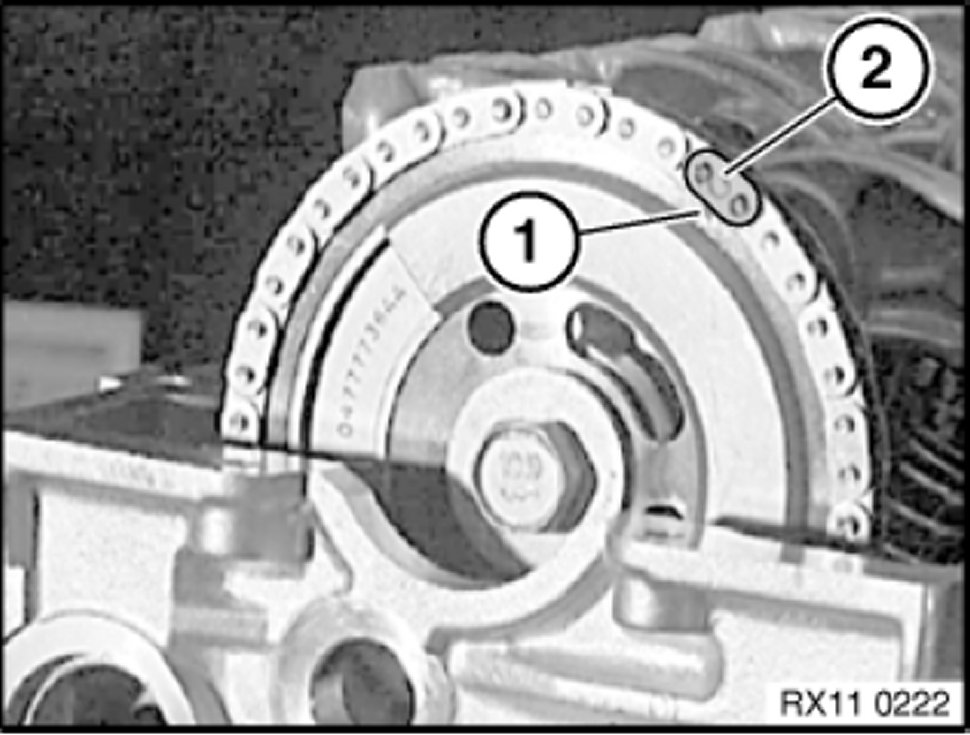

Triangular adjustment mark (1) on camshaft gear must be aligned with copper-colored timing chain links (2).

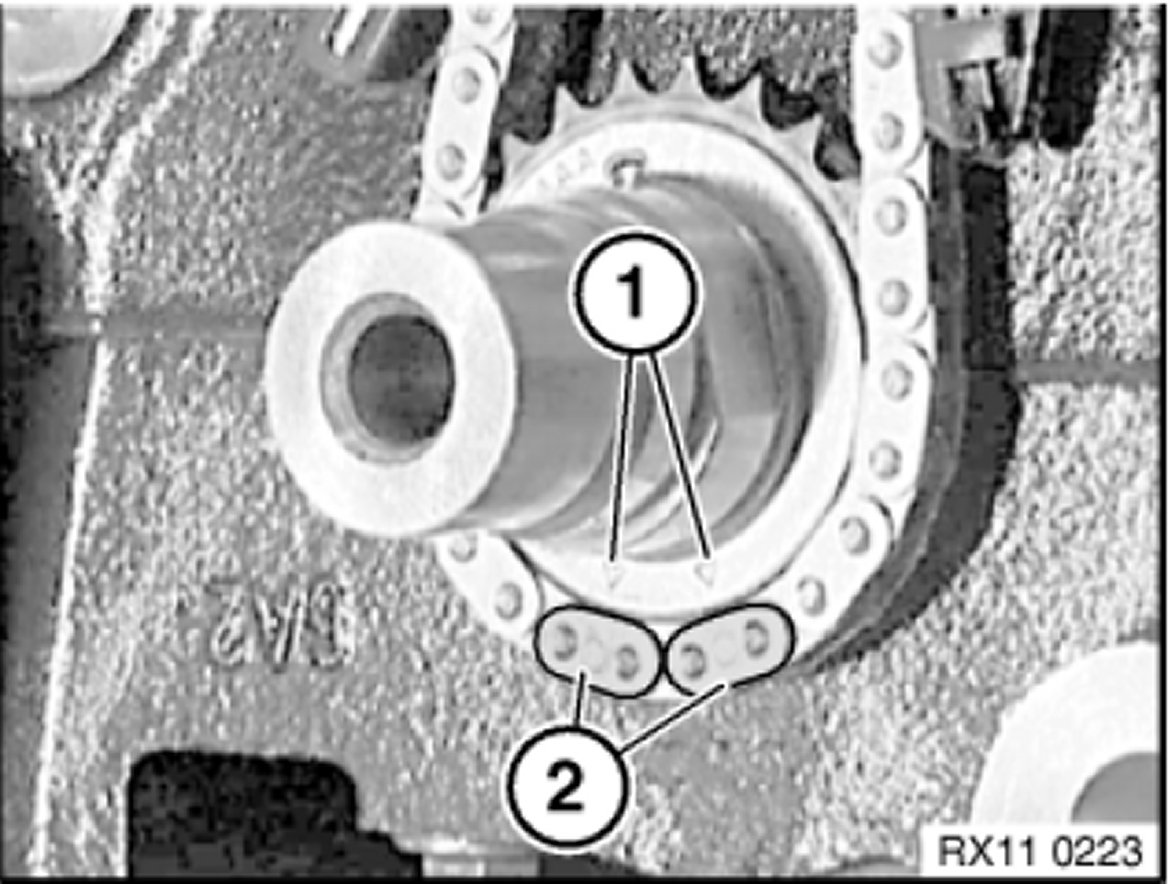

The two triangular adjustment marks (1) on crankshaft gear must be aligned with copper-colored timing chain links (2).

For additional information, please refer to Replacing Timing Chain.
