Rack and Pinion

The Steering Rack is mounted on the front subframe and is of conventional power assisted rack design. The rack is 2.56 turns lock to lock.

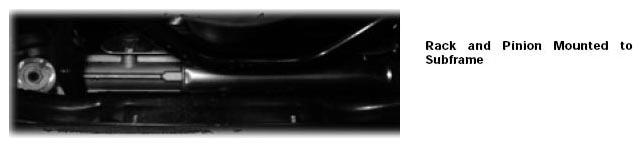

Fig 1: Rack And Pinion Mounted To Subframe
G04725164Courtesy of BMW OF NORTH AMERICA, INC.
