OBD Diagnostic Cable

The Diagnostic Cable is used to connect the diagnostic head to a vehicle via the OBD II diagnostic connector (upper right).

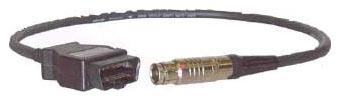

Fig 1: OBD Diagnostic Cable
G04730358Courtesy of BMW OF NORTH AMERICA, INC.
