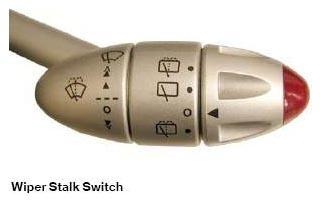

Wiper/Stalk Switch
The wiper/stalk switch located on the right side of the steering column can request single wipe, OFF (Park), intermittent wipe, slow, and fast speeds. The status of these five positions are sent to the BC1 using a coded ground signal across two wires. The switch also requests the BC1 for windshield washing and rear wiping/washing.
