ZCS Coding All Modules (w/ Progman v. 16 & higher)

From the Progman startup window, select New session .

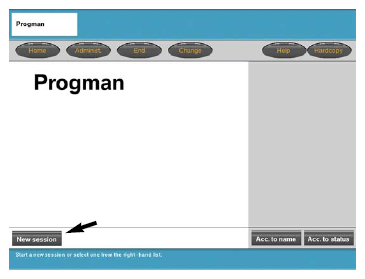

Fig 1: Display Screen - New Session

Courtesy of BMW OF NORTH AMERICA, INC.

Establish a connection to the interface connected to the vehicle and select Continue .

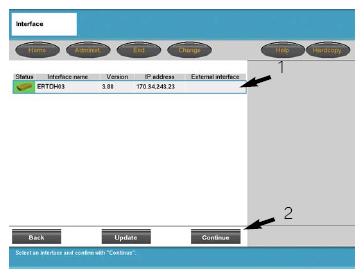

Fig 2: Display Screen - Continue

Courtesy of BMW OF NORTH AMERICA, INC.

To perform the procedure from CIP the Model series must be selected.

Select the MINI .

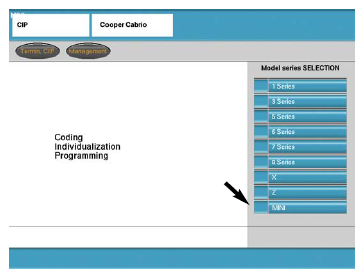

Fig 3: Display Screen - MINI

Courtesy of BMW OF NORTH AMERICA, INC.

From the top menu bar, select Vehicle .

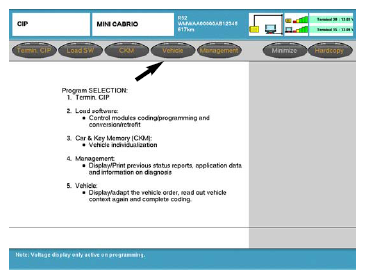

Fig 4: Display Screen - Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.

The CIP software now looks at the modules installed in the vehicle for:

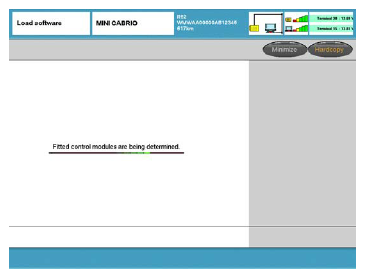

Fig 5: Display Screen - Control Modules

Courtesy of BMW OF NORTH AMERICA, INC.

To code all the modules fitted in the vehicle, select Complete encoding .

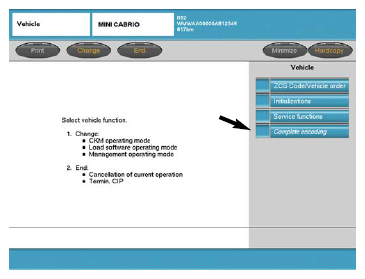

Fig 6: Display Screen - Complete Encoding

Courtesy of BMW OF NORTH AMERICA, INC.

A warning window appears to confirm selection.

Select Continue .

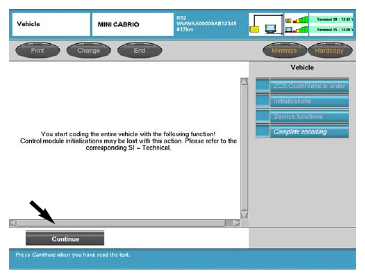

Fig 7: Display Screen - Continue

Courtesy of BMW OF NORTH AMERICA, INC.

To start complete vehicle encoding, select Yes .

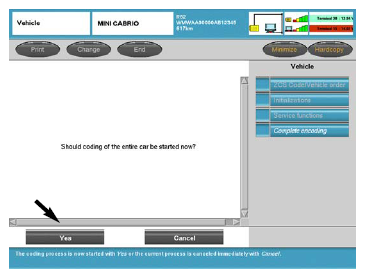

Fig 8: Display Screen - Yes

Courtesy of BMW OF NORTH AMERICA, INC.
