Roll Over

The MRS system does not specifically detect roll over conditions, but if as a consequence of the crash situation the system front or side trigger thresholds are exceeded, the relevant airbags and front seat belt pre-tensioners are deployed.

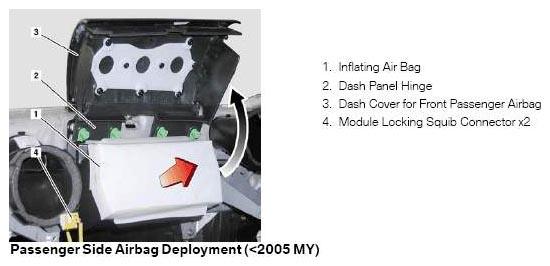

Fig 1: Passenger Side Airbag Deployment

Courtesy of BMW OF NORTH AMERICA, INC.

Workshop Hint

After repair of damage caused by a collision in which the airbag(s) did not deploy, the integrity of the MRS system must be checked using GT1.

Workshop Hint

Following deployment of the MRS within the vehicle, under any circumstances, all system components must be replaced.
