Temperature Flap

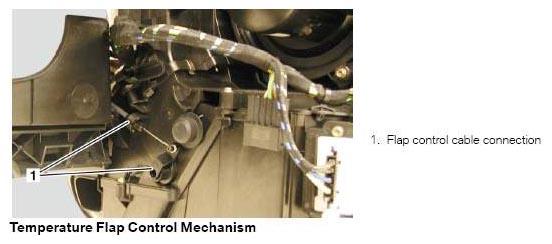

A blend flap regulates the temperature of the air leaving the heater unit by mixing heated air from the heater core with fresh or cooled air. A rotary temperature control operates the blend flap via a Bowden cable. The flap control mechanism and cable connection (1) is on the right side of the heater unit.
