61 13 ... Retaining bracket

Pull relevant fuse out of fuse block (1).

NOTE: Mark positions when removing fuses.

Pull locking slide (2) out of fuse block (1) as far as it will go.

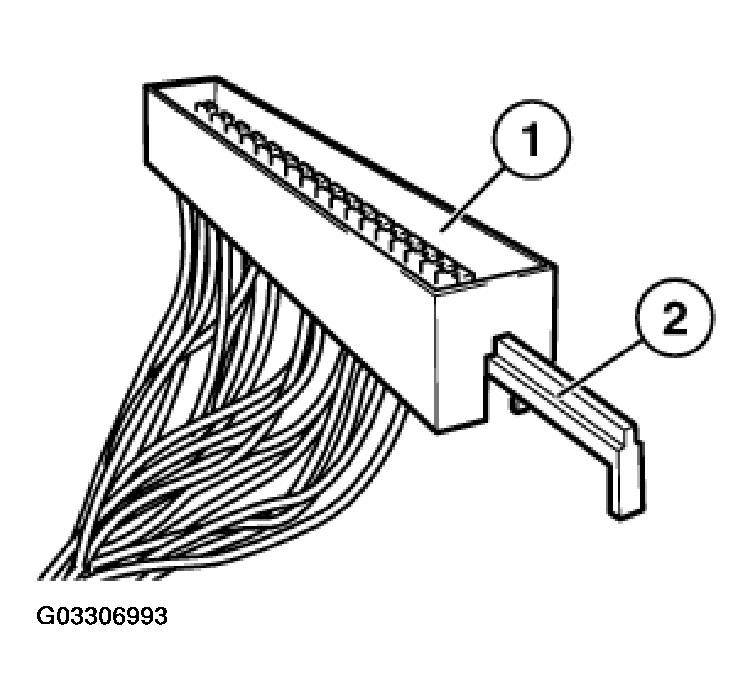

Fig 1: Removing Locking Slide From Fuse Block
G03306993Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (3) of appropriate contact and pull out cable.

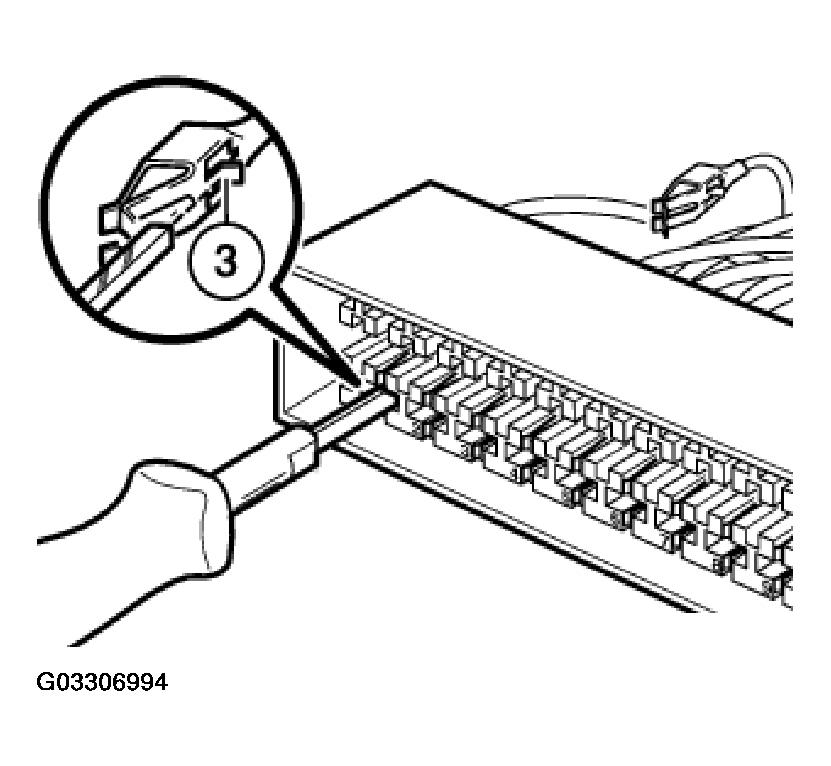

Fig 2: Pressing Arrester Hook
G03306994Courtesy of BMW OF NORTH AMERICA, INC.
