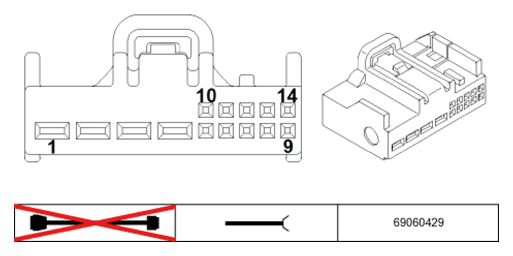

Convertible Soft Top Control Module X13037 Connector End View
Pin Assignments At Plug Connector X13037
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Relay activation, open folding sunroof | Relay 2 for lock and sliding canvas sunroof |
| 2 | E | Terminal 30 | Fuse holder II |
| 3 | A | Ground | Ground X490 |
| 4 | A | Relay activation, close folding sunroof | Relay 1 for lock and sliding canvas sunroof |
| 5 | A | Convertible top warning | Convertible top control button |
| 6 | E | Signal Close convertible top | Convertible top control button |
| 7 | E | Signal Open convertible top | Convertible top control button |
| 8 | E | Signal, rear window shelf | Microswitch, rear window shelf |
| 9 | E | Signal, cross brace | Microswitch, cross brace |
| 10 | Not used | ||
| 11 | A | Relay activation Open convertible top | Relay, convertible top 1 |
