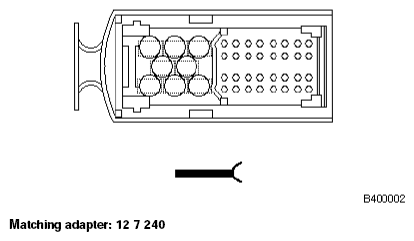

Digital Motor Electronics Control Unit X60004 Connector End View
Pin Assignments At Plug Connector X60004
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Voltage supply Driver's wish sensor 1 | Pedal-position sensor |
| 2 | A | Voltage supply Driver's wish sensor 2 | Pedal-position sensor |
| 3 | Not used | ||
| 4 | E | Signal Clutch pedal position switch | Clutch pedal position switch Clutch switch module |
| 5 | A | Electronic ground Driver's wish sensor 1 | Pedal-position sensor |
| 6 | A | Electronic ground Driver's wish sensor 2 | Pedal-position sensor |
| 7 | A | Activation, electric fan | Relay, electric fan |
| 8 | Not used | ||
| 9 | E | Pressure sensor signal, air conditioning system | Pressure sensor, air conditioning system |
| 10 | E | Pressure sensor signal, air conditioning system | Pressure sensor, air conditioning system |
| 11 | Not used | ||
| 12 | E | Signal Leakage diagnosis pump | Leakage diagnosis pump |
| 13 | A | Compressor enable from DME | Relay, A/C compressor |
| 14 | A | Activation, electric fan stage 2 | Relay, electric fan stage 2 |
| 15 | A | Signal Gearshift lock | Relay, shiftlock |
| 16 | A | Activation DME relay | K6300 DME relay |
| 17 | E | Signal Brake light | Connector Brake light |
| 18 | E | Brake light test signal | Connector, brake light test signal X10198 |
| 19 | E | Electronic ground, A/C pressure sensor | Pressure sensor, air conditioning system |
| 20 | A | Speed signal | I01002 Volute spring |
| 21 | Not used | ||
| 22 | Not used | ||
| 23 | Not used | ||
| 24 | E | Activation, main relay | K96 Fuel pump relay 1 |
| 25 | E | Signal Drive-away protection | A836 Electronic immobilizer control unit |
| 26 | E | Signal Driver's wish sensor 2 | Pedal-position sensor |
| 27 | E | Signal Driver's wish sensor 1 | Pedal-position sensor |
| 28 | E | Oxygen sensor signal | Heated oxygen sensor after catalytic converter |
| 29 | E/A | CAN bus high | Connector X8090 |
| 30 | E/A | CAN bus low | Connector X8091 |
| 31 | M | Signal, oxygen sensor ground | Heated oxygen sensor after catalytic converter |
| 32 | E/A | Diagnostic link | Connector X19527 OBDII |
| 33 | M | Ground | Ground point |
| 34 | M | Ground | Ground point |
| 35 | Not used | ||
| 36 | E/A | Diagnostic link | Connector X9397 |
| 37 | A | Terminal 15 | Fuse F34 |
| 38 | Not used | ||
| 39 | E | Terminal 87 | Fuse F02 |
| 40 | E | Terminal 30 | Fuse F01 |
