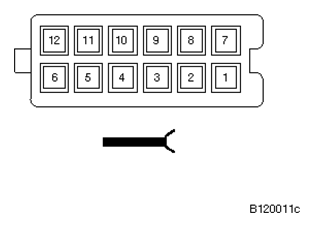

Outside Mirror Fold-In Control Unit X10313 Connector End View
Pin Assignments At Plug Connector X10313
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, outside mirror fold-in function | Outside mirror, Driver's side |
| 2 | M | Signal, outside mirror fold-in function | Outside mirror, Driver's side |
| 3 | E | Voltage supply | Fuse F3 |
| 4 | Not used | ||
| 5 | M | Ground | Ground point |
| 6 | Not used | ||
| 7 | A | Signal, outside mirror fold-in function | Outside mirror, passenger's side |
| 8 | M | Signal, outside mirror fold-in function | Outside mirror, passenger's side |
| 9 | Not used | ||
| 10 | Not used | ||
| 11 | E | Signal Processed wheel speed, rear right | ABS control module ABS/DSC unit |
| 12 | A | Signal, outside mirror adjustment switch | Mirror adjustment switch |
