12 36 000 Removing and installing (replacing) electronics box power module

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: High-voltage system - danger to life!
WARNING: The following points must be strictly observed prior to starting work:

Necessary preliminary tasks:

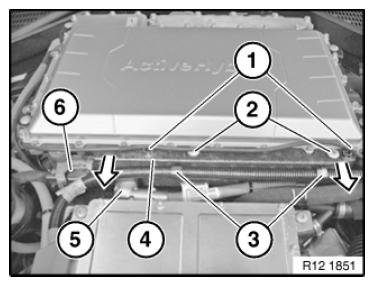

Unclip line from crash element (4) at attachment points (1).

Unfasten screws (2).

Tightening torque 12 36 3AZ .

Unclip line from crash element (4) at attachment points (3).

Feed out crash element (4) towards front.

UNLOCK PLUG CONNECTION (5) AND DISCONNECT .

UNFASTEN PLUG CONNECTION (6) AND DISCONNECT.

Fig 1: Disconnecting Crash Element Line
G08574022Courtesy of BMW OF NORTH AMERICA, INC.

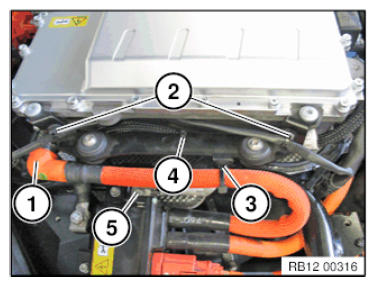

UNLOCK PLUG CONNECTION (1) AND DISCONNECT.

Detach line from attachment points (2).

Detach high voltage line from attachment points (3).

If necessary, detach cable strap (4) from grounding cable on power electronic box holder.

Release screw (5) from earthing cable.

Tightening torque 12 36 4AZ .

Fig 2: Identifying Earthing Cable Mounting Screws
G08574023Courtesy of BMW OF NORTH AMERICA, INC.

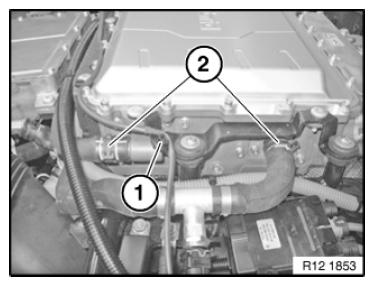

Detach line at attachment point (1).

Open clamps (2) with special tool 17 2 050 and pull off coolant hoses.

Fig 3: Identifying Coolant Hose Attachment Point And Clamps
G08574024Courtesy of BMW OF NORTH AMERICA, INC.

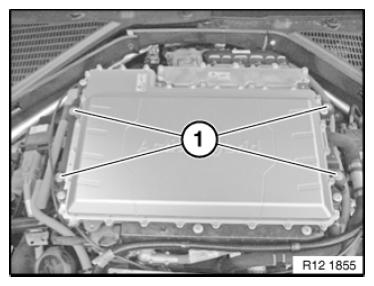

Release screws (1).

Tightening torque 12 36 2AZ .

Fig 4: Identifying Power Electronic Box Cover Mounting Screws
G08574025Courtesy of BMW OF NORTH AMERICA, INC.

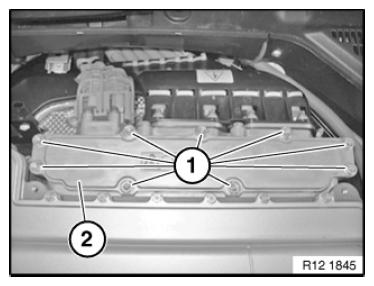

Release screws (1).

Tightening torque 12 36 5AZ .

Remove cover (2).

Installation note:

Clean sealing surface of lid (2).

Check the gasket of the power electronic box. If damaged, seal must be replaced.

Fig 5: Identifying Power Electronics Box Lid, Cover And Screws
G08574026Courtesy of BMW OF NORTH AMERICA, INC.

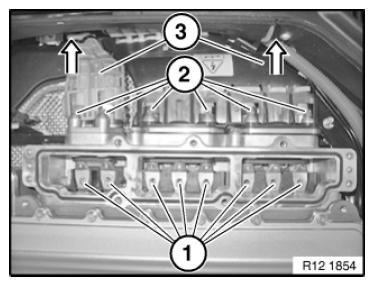

Release screws (1).

Tightening torque 12 36 6AZ .

IMPORTANT: Carefully remove screws (1) from power electronics box. After being screwed down, the power electronics box must not have any loose screws remaining in it.

Unfasten screws (2).

Tightening torque 12 36 7AZ .

Fig 6: Pulling High-Voltage Cables
G08574027Courtesy of BMW OF NORTH AMERICA, INC.

Pull high-voltage cables (3) a little towards rear from guides of electronics box power module.

Installation:

During installation, make sure that high-voltage cables (3) are correctly seated in electronics box power module.

IMPORTANT: Conduct this operation with the assistance of a second person

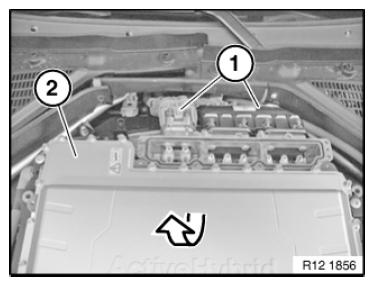

Feed out electronics box power module (2) towards front.

Installation note:

Carefully feed in high-voltage cables (1).

Fig 7: Removing Electronics Box Power Module
G08574028Courtesy of BMW OF NORTH AMERICA, INC.

FILLING AND VENTING COOLING SYSTEM WITH VACUUM FILLING UNIT

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
