61 35 400 Removing and installing/replacing hybrid interface module (HIM)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

CLAMP OFF BATTERY NEGATIVE LEAD
REMOVE SIDE COVER ON INSTRUMENT PANEL ON RIGHT

Unfasten plug connection (1) and disconnect.

Release screw (2).

Tightening torque 61 35 1AZ .

Feed out hybrid interface module (HIM) (3) on side.

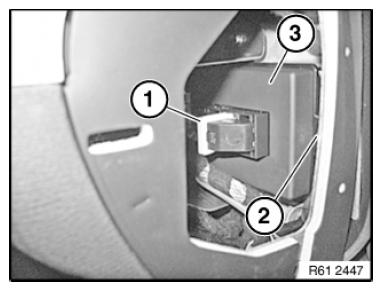

Fig 1: Identifying Hybrid Interface Module, Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Hybrid interface module (HIM) (1) must be fed in correctly in guide (2) of body bulkhead.

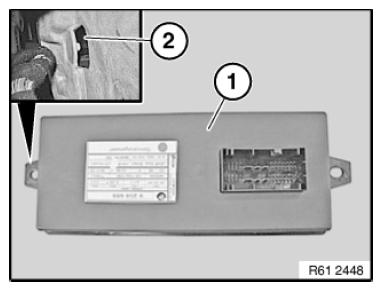

Fig 2: Identifying Hybrid Interface Module And Body Bulkhead Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
