61 13... Crimping stop parts

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

12 1 080
12 1 081
12 1 083

Crimping contact sleeves for 4 mm ² comb connectors and ignition cable contacts:

Use special tool kit 12 1 080 to attach ignition cable contacts and crimp 4 mm² contact sleeves for comb connectors.

12 1 081 (hand pliers)
12 1 083 (nest)

See Repair Instructions

SPECIAL TOOLS FOR WIRING HARNESS REPAIRS.

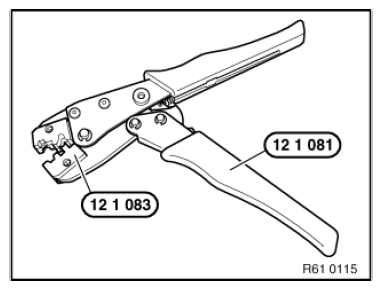

Fig 1: Identifying Hand Pliers (12 1 081) And Nest (12 1 083)

Courtesy of BMW OF NORTH AMERICA, INC.

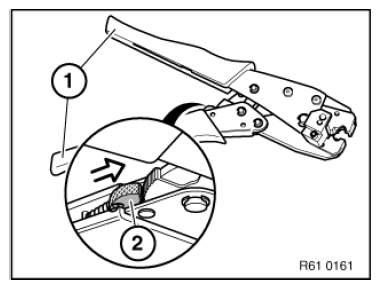

Release special tool 12 1 081:

Squeeze grips (1) lightly and push release lever (2) in direction of arrow.

Or:

Compress handles until limit position, hand pliers unlock automatically.

Fig 2: Pushing Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

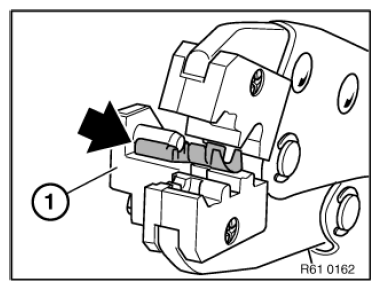

Place 4 mm² contact sleeve in nest with anti-twist safeguard (1) as far as possible.

Fig 3: Locating Nest With Anti-Twist Safeguard

Courtesy of BMW OF NORTH AMERICA, INC.

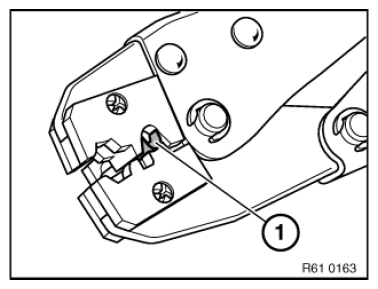

Preload contact by squeezing matrix in crimping tool. Grip contact (1) firmly only, do not crimp.

Fig 4: Identifying Crimping Tool Grip Contact

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for CUTTING AND STRIPPING INSULATION from cables.

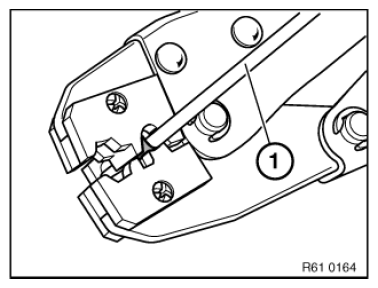

Insert stripped end of wire (7) in the contact. Ensure insulation and stripped wire end are correctly laid in contact.

Compress crimping tool to limit position.

Crimping tool unlocks automatically.

Take contact out of crimping tool.

Fig 5: Inserting Stripped End Of Wire In Contact

Courtesy of BMW OF NORTH AMERICA, INC.

4. Checking crimping

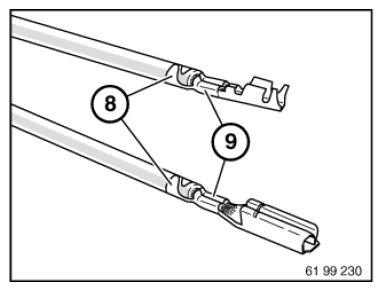

Check insulation crimping (8) and wire crimp (9) against following illustrations to ensure crimps are correctly located.

NOTE: Illustration shows butt connectors and contact sleeves for comb connectors knocked on one side. The crimping procedure is identical here.

Fig 6: Identifying Insulation Crimping And Wire Crimp

Courtesy of BMW OF NORTH AMERICA, INC.

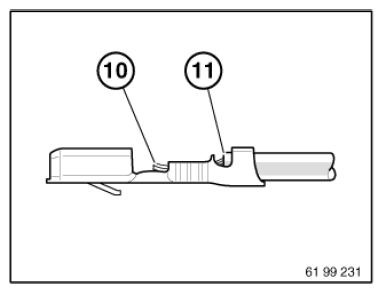

Correct crimping:

Visible conductor end (10).

Visible insulation end (11).

Fig 7: Identifying Correct Crimping Of Conductor End And Insulation End

Courtesy of BMW OF NORTH AMERICA, INC.

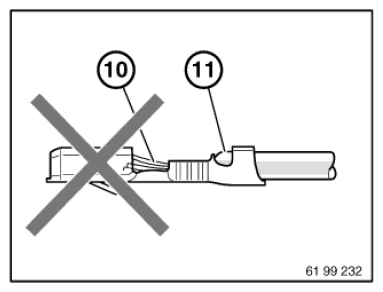

Incorrect crimping:

Conductor end (10) inserted too far.

Insulation end (11) in wire crimp.

If necessary, repeat crimping with a new contact.

Fig 8: Identifying Incorrect Crimping Of Visible Conductor End And Insulation End

Courtesy of BMW OF NORTH AMERICA, INC.

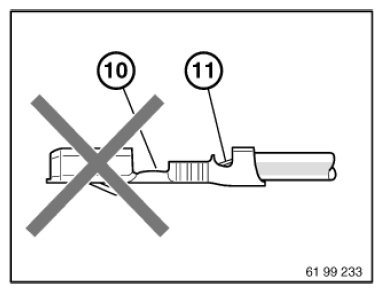

Incorrect crimping:

Conductor end (10) not visible.

Insulation end (11) not visible.

If necessary, repeat crimping with a new contact.

Fig 9: Identifying Incorrect Crimping Of Conductor End And Insulation End

Courtesy of BMW OF NORTH AMERICA, INC.
