61 13... Socket housings, 2x21-, 2x27-pin, Hybrid Systems MQS/MPQ, Elo/Elo- Power

Manufactured by AMP:  The following contact types without strand sealing can be fitted in the socket housings:

• MQS (Micro Quadlock System)
• MPQ, width 2.8 mm (Micro Power Quadlock)
• MPQ, width 5.2 mm (Micro Power Quadlock)

Manufactured by Siemens:  The following contact types without strand sealing can be fitted in the socket housings:

• Elo (electronic contact)
• Elo-Power 2.8 mm wide (electronic contact for heavy loads)
• Elo-Power 5.2 mm wide (electronic contact for heavy loads)

Raise lock (1) on housing (2).

Push contact carrier (3) from rear out of housing.

Pushing out the contact carrier releases the secondary locks of the socket contacts.

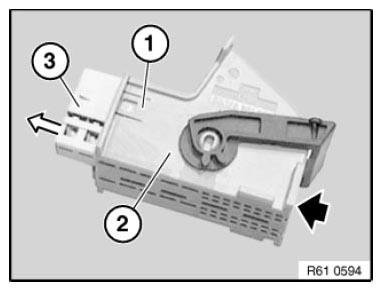

Fig 1: Pushing Contact Carrier From Rear Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

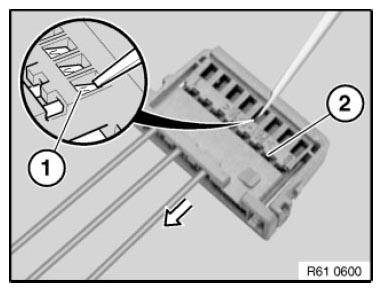

Fig 2: Pulling Socket Contact Wire Using Small Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook in secondary lock (1) again and pull cable with socket contact (2) completely out of contact carrier (3).

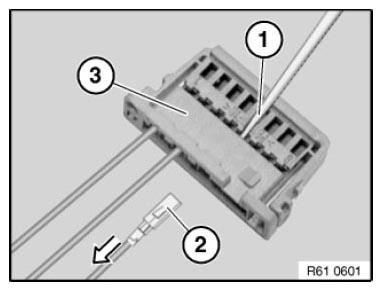

Fig 3: Removing Cable With Socket Contact

Courtesy of BMW OF NORTH AMERICA, INC.
