61 13... Removing and installing/replacing fibre-optic cable connector

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Remove TRIM ON C-PILLAR AT BOTTOM LEFT .

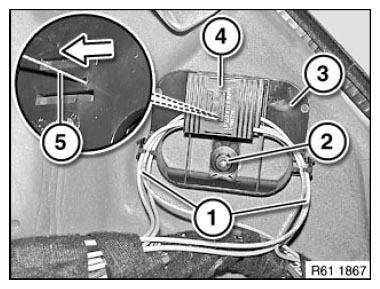

Slacken nut (2).

Feed fibre optic cable (1) out of holder (3).

Unlock catch on fibre-optic cable connector (4) with a suitable tool (5).

Remove fibre-optic cable connector (4) in direction of arrow from bracket (3).

Fig 1: Removing Fibre-Optic Cable Connector From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

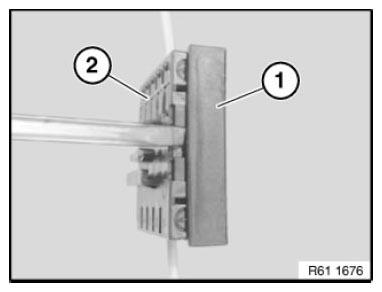

Carefully raise cover cap (1) with a suitable tool and remove from fibre-optic cable connector (2).

Fig 2: Removing Fibre-Optic Cable Connector Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

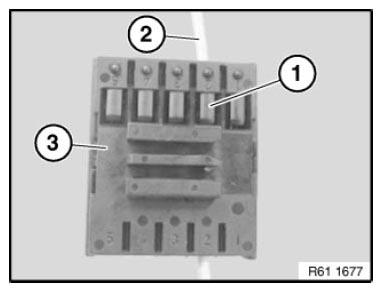

Carefully raise lock (1) and pull fibre-optic cable (2) out of fibre-optic cable connector (3).

Installation:

Make sure fibre-optic cable (2) is correctly seated and engaged in fibre-optic cable connector (3).

Fig 3: Pulling Fibre-Optic Cable From Fibre-Optic Cable Connector

Courtesy of BMW OF NORTH AMERICA, INC.
