00 Safety information for working on vehicles with automatic engine start-stop function (MSA)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If the engine hood/bonnet contact is pulled upwards (workshop mode), the information "switch closed" is output. The automatic engine start-stop function is active.
An automatic engine start is possible.

Observe safety precautions when working on MSA vehicles.

Before carrying out practical work on the engine, always ensure that the MSA functionality is deactivated so as to prevent automatic engine starting while work is being carried out in the engine compartment.

MSA function is deactivated by

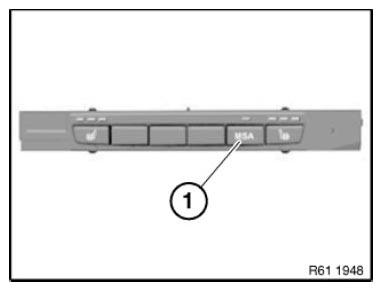

Deactivate MSA by means of button (1) in passenger compartment
Open seat belt buckle and driver's door

Fig 1: Identifying Passenger Compartment MSA Button
Courtesy of BMW OF NORTH AMERICA, INC.

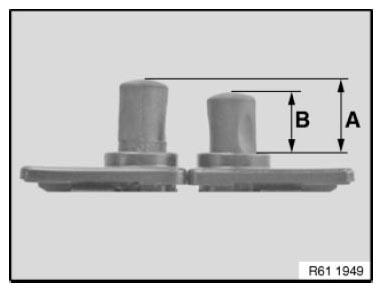

Open engine bonnet/hood and ensure that engine hood/bonnet contact is not in workshop mode
- Workshop mode
  1. = 10 mm
- Basic setting (engine hood/bonnet open)
  1. B = 7 mm
To make sure that the engine hood/bonnet contact is at the basic setting, if necessary press the hood/bonnet contact up to the limit position before starting work and slowly release.

Fig 2: Identifying Engine Bonnet/Hood Workshop Mode And Basic Setting Length
Courtesy of BMW OF NORTH AMERICA, INC.

When working with diagnosis tools

Observe instructions in diagnosis tool
