61 31 118 Removing and installing/replacing power window switch (front passenger side)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.

Lever power window switch (1) with special tool 00 9 317 in direction of arrow out of armrest.

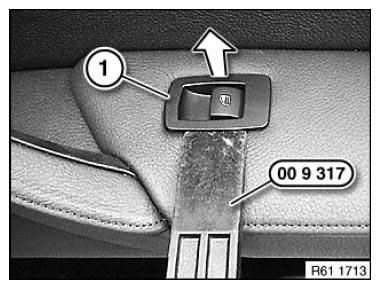

Fig 1: Removing Power Window Switch Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect associated plug connection and remove power window switch (1).

Installation note:

Retaining hooks (1) of power window switch (2) must not be damaged.

Make sure power window switch (2) is correctly seated in armrest.

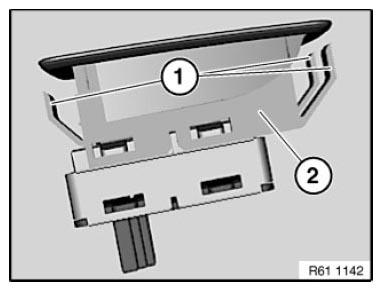

Fig 2: Identifying Power Window Switch And Hooks

Courtesy of BMW OF NORTH AMERICA, INC.
