61 11... Installing repair cable for left Side View camera

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .

NOTE: Work is shown on the E70 by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.

Necessary preliminary tasks:

Carefully pull carpet (1) in driver's footwell downward. Break through opening (2) in rubber grommet (3) using a suitable tool.

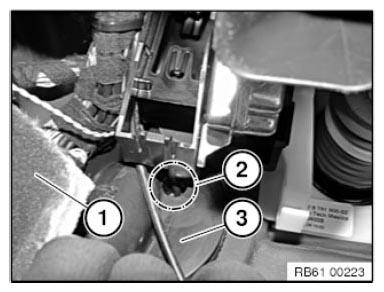

Fig 1: Identifying Driver's Footwell Grommet, Carpet And Opening
G08573674Courtesy of BMW OF NORTH AMERICA, INC.

Undo clip (1) and screws (3). Remove cover (2).

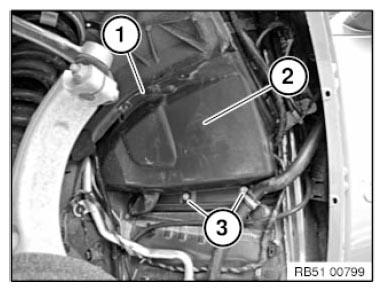

Fig 2: Identifying Cover, Screws And Clip
G08573675Courtesy of BMW OF NORTH AMERICA, INC.

Unlock the lock (1) in direction of arrow with suitable tool.

IMPORTANT: Risk of damage!

Unlock the lock (3) carefully  with a suitable tool. Pull connector housing (4) of line (2) in direction of arrow.

Installation note:

Pay attention to encoding (5)!

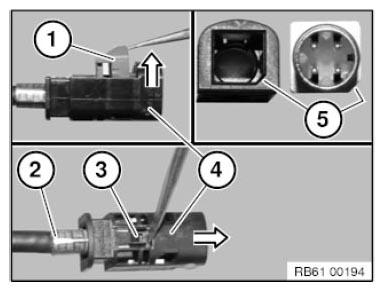

Fig 3: Pulling Connector Housing
G08573676Courtesy of BMW OF NORTH AMERICA, INC.

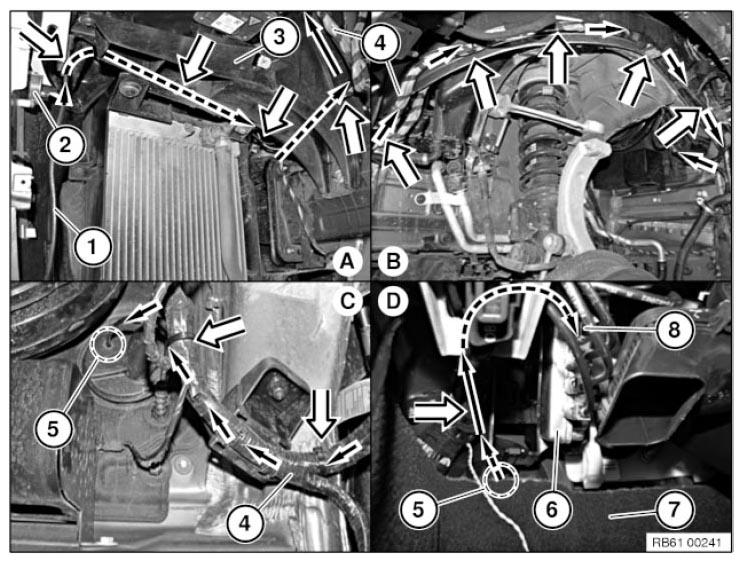

Fig 4: Side View Camera Wiring Harness Routing (Driver's Footwell)
G08573677Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Repair cable (1) is laid from Side View camera (2) along wiring harness (4) in the wheel arch to the all-round vision camera control unit (6) in the driver's footwell.
Leave approx. 10 cm overlength in the area of Side View camera (2).

Connect repair cable (1) to Side View camera (2).

Lay repair cable (1) in direction of arrow behind support (3) along wiring harness (4) and secure to points marked with an arrow (picture A, B, C, D).

Feed through repair cable (1) at point (5) in driver's footwell (picture C).

Assemble repair cable (1).

Connect repair cable (1) to connector (8) of all-round vision camera control unit (6) (4th slot from below, picture D).

NOTE: Lay any repair cable (1) overlength under carpet (7).
After successful completion of function check  , detach start and end of faulty cable  at first mounting point.
IMPORTANT: To prevent moisture from entering the passenger compartment, seal opening (5) on the outside, using suitable means!
