61 11... Installing repair cable for right Side View camera

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with notes on HANDLING WIRING HARNESSES AND WIRING .

NOTE: Work is shown on the E70 by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.

Necessary preliminary tasks:

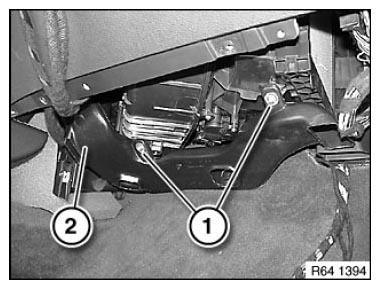

Release screws (1) and remove air duct (2).

Fig 1: Identifying Air Duct And Screws
G08573679Courtesy of BMW OF NORTH AMERICA, INC.

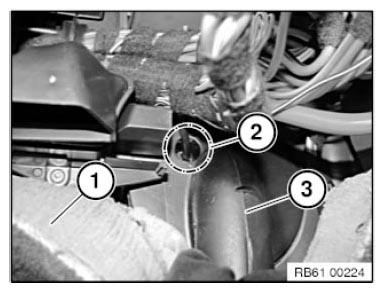

Carefully pull carpet (1) in passenger footwell downward. Break through opening (2) in rubber grommet (3) using a suitable tool.

Fig 2: Identifying Passenger Footwell Carpet, Opening And Rubber Grommet
G08573680Courtesy of BMW OF NORTH AMERICA, INC.

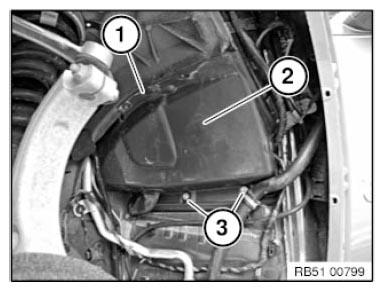

Undo clip (1) and screws (3). Remove cover (2).

Fig 3: Identifying Cover, Screws And Clip
G08573681Courtesy of BMW OF NORTH AMERICA, INC.

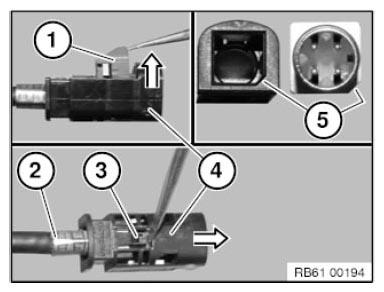

Unlock the lock (1) in direction of arrow with suitable tool.

IMPORTANT: Risk of damage!

Unlock the lock (3) carefully  with a suitable tool. Pull connector housing (4) of line (2) in direction of arrow.

Installation note:

Pay attention to encoding (5)!

Fig 4: Pulling Connector Housing
G08573682Courtesy of BMW OF NORTH AMERICA, INC.

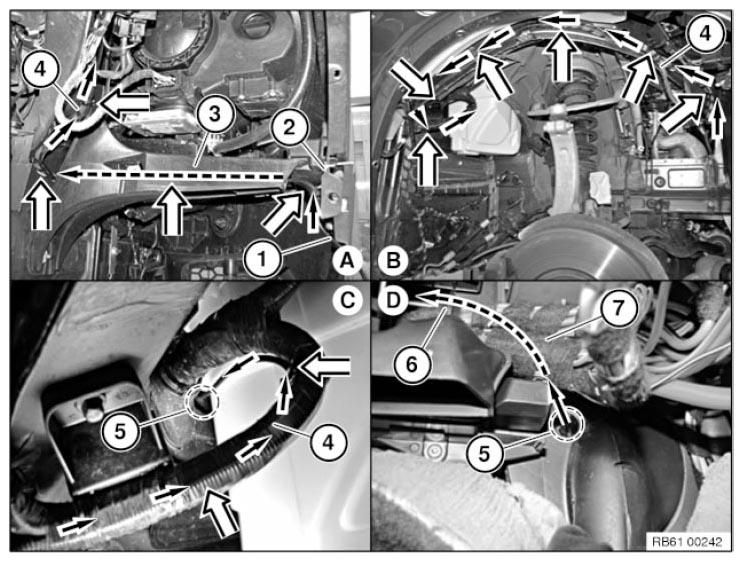

Fig 5: Side View Camera Wiring Harness Routing (Passenger's Footwell)
G08573683Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Repair cable (1) is laid from Side View camera (2) along wiring harness (4) in the wheel arch in the passenger footwell under the heating and air-conditioning unit to the all-round vision camera control unit in the driver's footwell.
Leave approx. 10 cm overlength in the area of Side View camera (2).

Connect repair cable (1) to Side View camera (2).

Lay repair cable (1) in direction of arrow behind support (3) along wiring harness (4) and secure to points marked with an arrow (picture A, B, C).

Feed though repair cable (1) at point (5) in passenger footwell and lay under wiring harness (7) and wiring harness mounting (6) (picture C, D).

IMPORTANT: To prevent moisture from entering the passenger compartment, seal opening (5) on the outside, using suitable means!

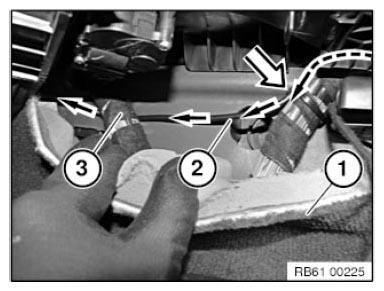

Carefully pull carpet (1) downward. Lay repair cable (2) in direction of arrow under wiring harness (3) and secure at a point marked with an arrow.

Fig 6: Passenger Footwell Wiring Harness Routing
G08573684Courtesy of BMW OF NORTH AMERICA, INC.

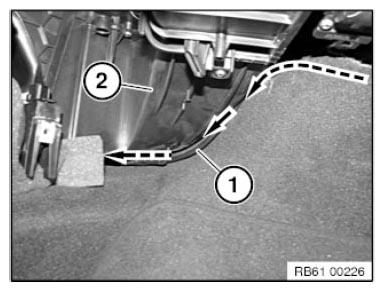

Feed through repair cable (1) under heating and air-conditioning unit (2) from passenger footwell into driver's footwell.

Fig 7: Passenger Footwell To Driver's Footwell Repair Cable Layout
G08573685Courtesy of BMW OF NORTH AMERICA, INC.

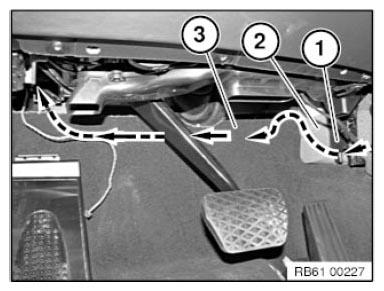

Lay repair cable in direction of arrow under heating and air-conditioning unit (1), foam material (2) and carpet (3).

Fig 8: Heating And Air-Conditioning Unit Repair Cable Layout
G08573686Courtesy of BMW OF NORTH AMERICA, INC.

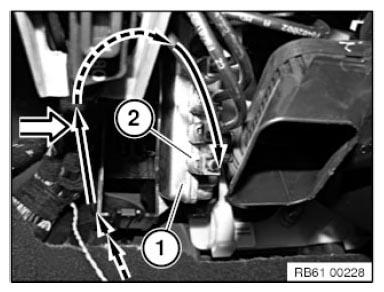

Lay repair cable in direction of arrow and secure at a point marked with an arrow.

Assemble repair cable.

Connect repair cable to connector (2) of all-round vision camera control unit (1) (bottom slot).

NOTE: Lay any repair cable overlength under carpet.

After successful completion of function check  , detach start and end of faulty cable  at first mounting point.

Fig 9: Connecting Repair Cable To Connector Of All-Round Vision Camera Control Unit
G08573687Courtesy of BMW OF NORTH AMERICA, INC.
