12 36 012 Removing and installing (replacing) heat shield
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:

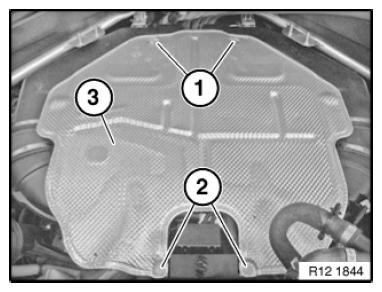

Release screws (1).
Tightening torque 12 36 14AZ .
Unfasten screws (2).
Tightening torque 12 36 14AZ .
Remove heat shield (3).
