84 21 541 Removing and installing (replacing) hands-free charging electronics (High)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Remove COMPLETE REAR CONSOLE

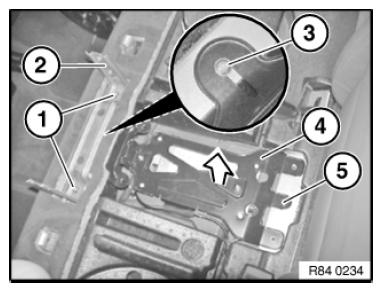

Release nuts (1) and remove rear console holder (2).

Release screw (3) and raise hands-free charging electronics holder (4) in direction of arrow.

Installation:

Make sure centering pin (5) is correctly seated in associated hold of hands-free charging electronics holder (4).

Fig 1: Removing Hands-Free Charging Electronics Holder

Courtesy of BMW OF NORTH AMERICA, INC.

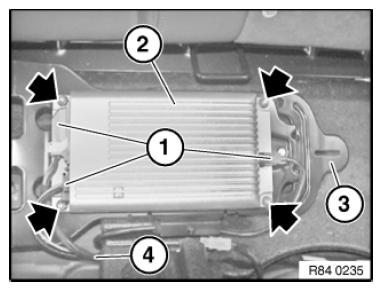

Disconnect plug connection (1).

Release all nuts.

Remove hands-free charging electronics (2) from hands-free charging electronics holder (3).

Installation:

Make sure wiring harness (4) is laid correctly.

Fig 2: Locating Hands-Free Charging Electronics Mounting Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

If necessary, log mobile phone on to vehicle.
