61 31 135 Removing and installing/replacing headphones connection socket

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

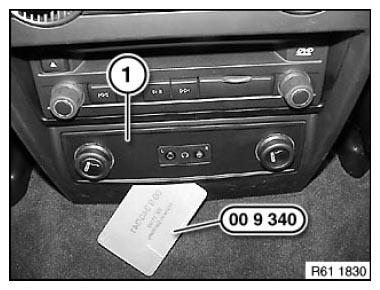

Unclip trim (1) with special tool 00 9 340 from center console.

Installation:

Retaining lugs on trim (1) must not be damaged or missing.

Make sure trim (1) is correctly engaged on center console.

Fig 1: Disconnecting Trim From Centre Console Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

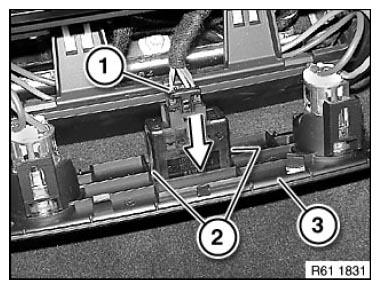

Disconnect plug connection (1).

Press together retaining lugs (2) and feed headphones connection socket in direction of arrow out of trim (3).

Installation:

Make sure headphones connection socket is correctly seated in trim (3).

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
