61 31 117 Removing and installing/replacing power window switch (driver's side)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

NOTE:

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.

Lever power window switch (1) with special tool 00 9 317 in direction of arrow out of armrest.

Installation:

Make sure power window switch (1) is correctly engaged in armrest.

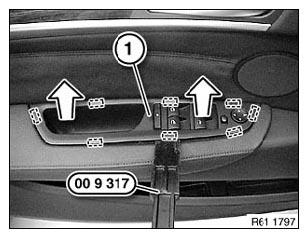

Fig 1: Lever Power Window Switch (1) With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove power window switch.

Installation:

Make sure retainers (2) are correctly seated on power window switch.

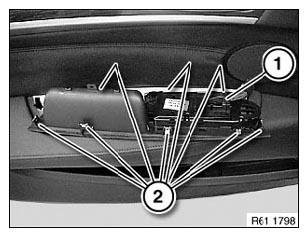

Fig 2: Identifying Retainers And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
