General Electrical System - Repair - Convertible (R57)
>>
Headlight Washer System
>>
61 61... Overview of windscreen washer system and headlight washer system (SRA)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
61 61... Overview of windscreen washer system and headlight washer system (SRA)

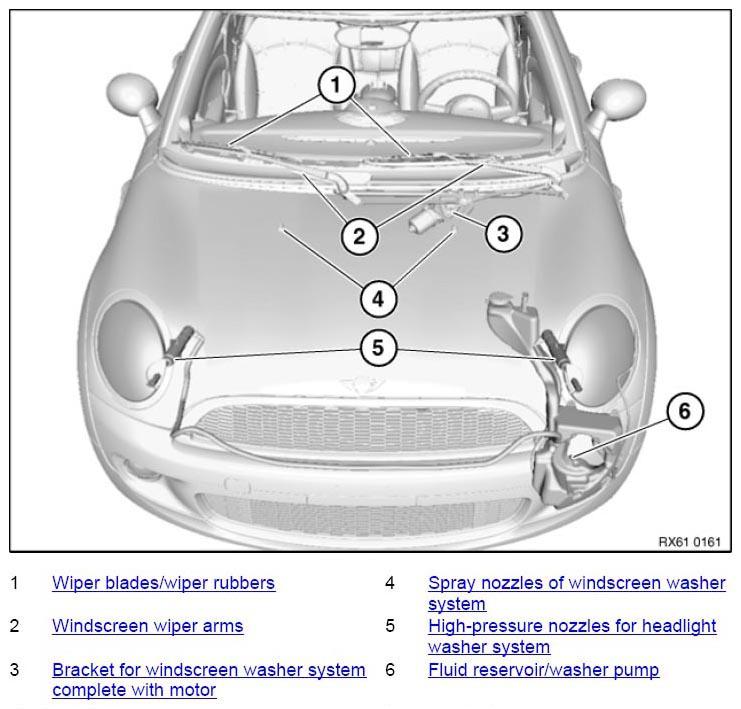

Fig 1: Overview Of Windscreen Washer System And Headlight Washer System (SRA)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
