51 31... Window glass removal with wire pull handle: Notes
WARNING:
Follow SAFETY INSTRUCTIONS for working on vehicles with airbag systems (risk of injury).
Always wear safety goggles and protective gloves for your own safety.
Always wear safety goggles and protective gloves for your own safety.
Attention!
Handle sharp-edged tools with care (risk of damage to the head airbag and the window glass).
Attention!
Follow the vehicle-specific repair instructions!
Protect inner and outer working area (body, trim panels, cables etc.) against damage.
Depending on the area of application, a separating cord can also be used as an alternative to wire.
Using the separating cord prevents any damage to the body.
Do not pull the separating cord over any sharp edges (risk of tearing)!
Used tool:
- Wire pull handles (BMW/MINI Order number: 81 43 2 326 501)
- Dashboard protection (BMW/MINI Order number: 83 30 2 337 983)
- Wire starter (special tool 2 150 267) (BMW/MINI Order number: 83 30 2 336 541)

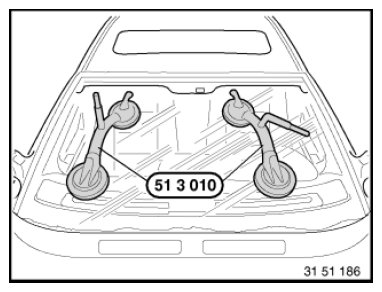

Use suction cups (51 3 010 ) to lift out the window glass.
Always keep both suction cups dry and clean to ensure their optimum adhesion on the windscreen.
Secure window glass (if necessary with adhesive tape) against falling out.
