33 10... Overview of rear differential/output shafts

WARNING: This page is about a different car, the 2009 BMW 550i and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

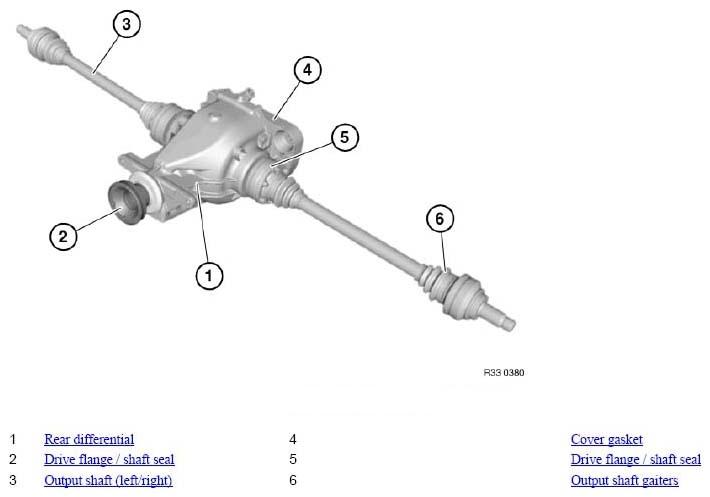

Fig 1: Overview Of Rear Differential/Output Shafts
G05511610Courtesy of BMW OF NORTH AMERICA, INC.
