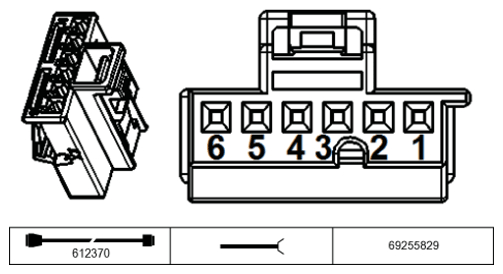

Steering Column Switch Cluster SX18325A Connector End View
Pin Assignments At Plug Connector X18325
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Positive activation, airbag | Multiple restraint system control module |
| 2 | E | Negative activation, airbag | Multiple restraint system control module |
| 3 | E | Negative activation, airbag | Multiple restraint system control module |
| 4 | E | Positive activation, airbag | Multiple restraint system control module |
| 5 | E | Signal, fanfare (horn) | Junction box |
| 6 | M | Ground | Ground connector |
