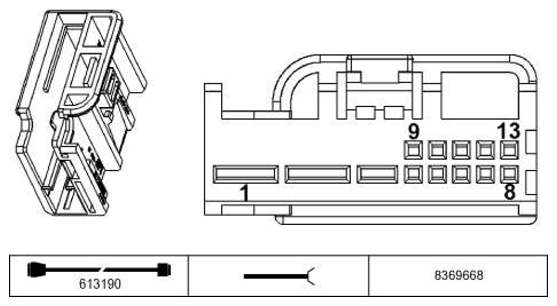

Sunroof SX916A Connector End View
Pin Assignments At Plug Connector X916
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Positive supply | Fuse F6 |
| 2 | M | Ground | Ground point |
| 3 | -- | Not occupied | |
| 4 | -- | Not occupied | |
| 5 | E | Switch signal | Roof operating unit |
| 6 | E | Switch signal | Roof operating unit |
| 7 | E | Switch signal | Roof operating unit |
| 8 | -- | Not occupied | |
| 9 | -- | Not occupied | |
| 10 | -- | Not occupied | |
| 11 | -- | Not occupied | |
| 12 | E/A | K-CAN system bus | CAN bus connector |
| 13 | E/A | K-CAN system bus | CAN bus connector |
