MOST Control Unit Sequence (E65)

WARNING: This page does not describe the selected car, but rather 59 other vehicles, including the 2009 BMW M5, 2009 BMW 650i, 2009 BMW 550i, 2008 BMW M5, and 2008 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Important! The component sequence of the MOST controllers in the ETM is incorrect when it comes to signal transmission direction. The correct sequence is indicated above!

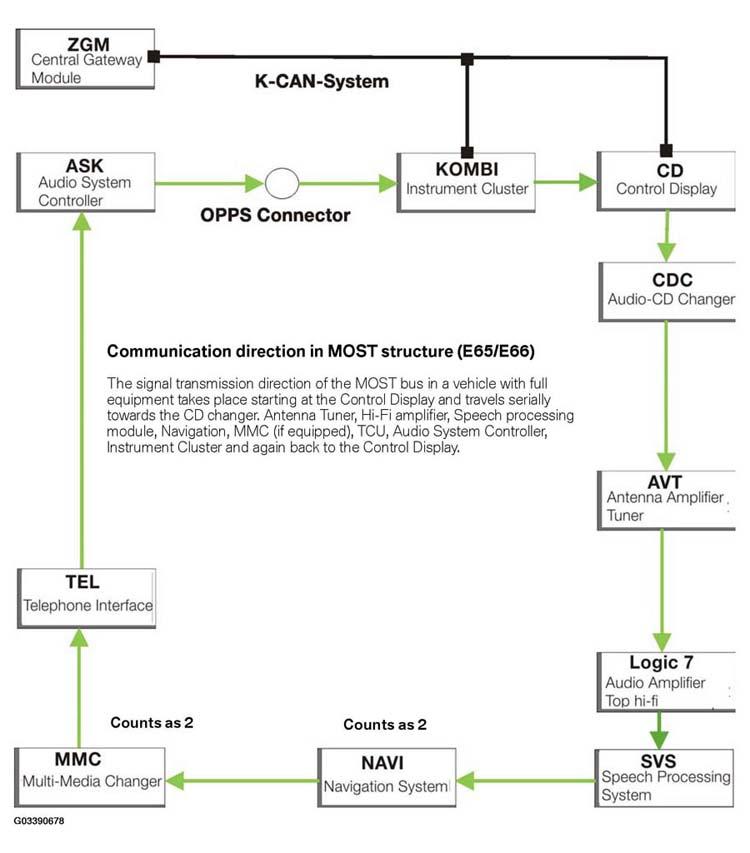

Fig 1: Most Control Unit Sequence (E65)
G03390678Courtesy of BMW OF NORTH AMERICA, INC.
