31 35 000 Removing and Installing/Replacing Front Stabilizer (AWD)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 335xi, 2008 BMW 328xi, 2007 BMW 335xi, 2007 BMW 328xi, and 2006 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: To avoid complaints being made by the customer about noise, set the car on its wheels and tighten down the stabilizer mounting to specified torque.

Necessary preliminary tasks:

Remove front assembly underside protection. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT ASSEMBLY UNDERSIDE PROTECTION
Remove stabilizer link on both sides from stabilizer. See 31 35 005 Removing and Installing/Replacing Push Rod (Stabilizer Link) for Left or Right Stabilizer (AWD)

NOTE: The following illustrations was created using the E91 with M57T2 as an example. Other vehicles and engines may show differences in detail.

N52:

Remove coolant pipe from front axle carrier.

Release screws (1).

Remove bracket (2) with pressure line for power steering from front axle carrier.

Remove stabilizer (3).

Installation:

Check rubber mount on both sides, replace if necessary.

Set car on its wheels and tighten down nuts to tightening torque 31 35 1AZ.

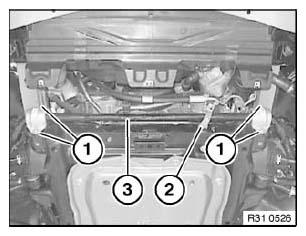

Fig 1: Identifying Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove rubber mount on both sides from stabilizer.
