Section 1706 (Seats - Repair)
>>
17 Front Seat, Comfort
>>
52 17 ... Overview Of Front Seat (Comfort)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
52 17 ... Overview Of Front Seat (Comfort)
WARNING:
This page is about a different car, the 2008 BMW Alpina and 2007 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

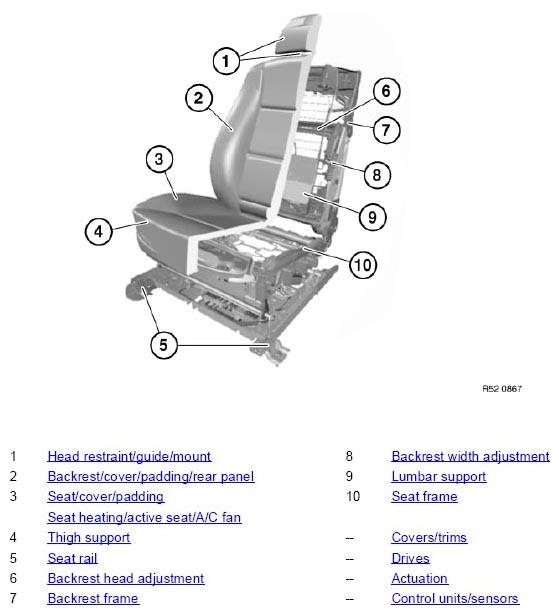

Fig 1: Identifying Front Seat (Comfort) Components
Courtesy of BMW OF NORTH AMERICA, INC.
