61 9 040 Set Of Tools For Repair Kit IV

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E83, E85, E87, E90, E91, E92, R50, R52, R53

Storage location: K 108

SI number: 2 02 92(505)

Order number: 61 9 040

Set of tools for repair kit IV

Consisting of:

1 = 61 9 041 Hand pliers without crimper

2 = 61 9 042 Crimper

Note: For crimping butt connectors and contact sleeves for strip connectors

3 = 61 9 043 Cable stripper with wire cutter

4 = 61 9 044 Crimper

Note: For crimping antenna connector (antenna cable/radio plug connection)

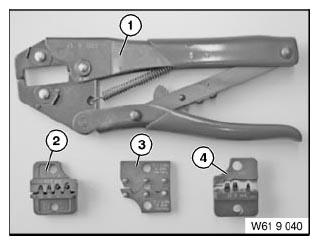

Fig 1: Set Of Tools For Repair Kit IV (61 9 040 )

Courtesy of BMW OF NORTH AMERICA, INC.
