61 31 ... Overview Of Switches In Steering Wheel Area

WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

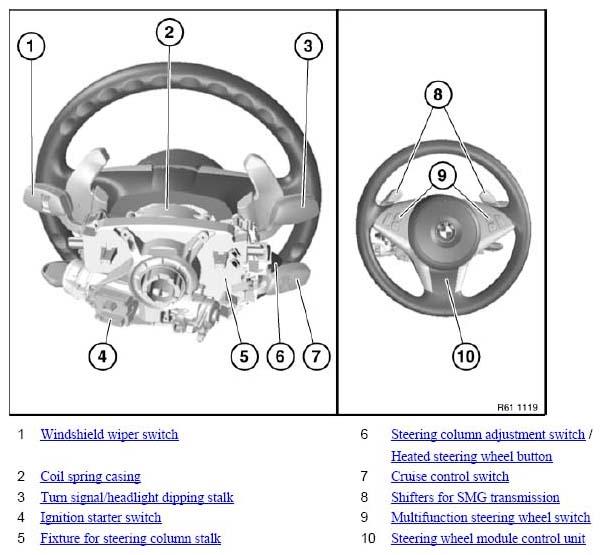

Fig 1: Identifying Switches In Steering Wheel Area
G04957547Courtesy of BMW OF NORTH AMERICA, INC.
