52 17 ... Replacing Padding For Front Seat Thigh Support

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2007 BMW 550i, 2007 BMW 530xi, 2007 BMW 530i, 2007 BMW 525xi, and 2007 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

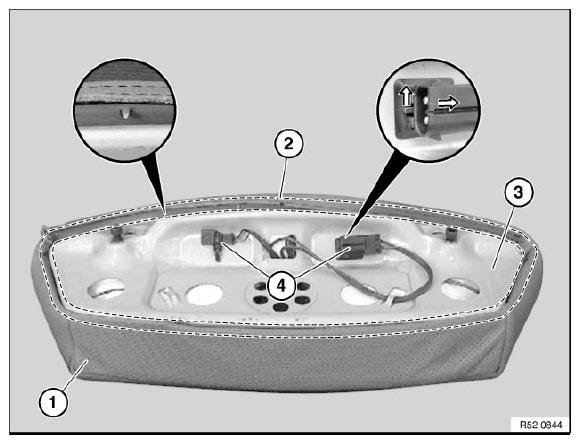

Fig 1: Removing Plug Connections And Feed Out Through Trim

G04742852

Courtesy of BMW OF NORTH AMERICA, INC.

The work operations here are shown on the version with air conditioning and seat heating. Feed out seat cover (1) in area (2).

Installation:

Seat cover (1) is fastened by hooks in trim (3).

Remove plug connections (4) and feed out through trim (3).

Remove trim (3); if necessary, remove padding or cover.

Version with seat heating or air conditioning:

Feed out cable (1) and remove padding (2).

Installation:

Ensure correct cable routing (1).

Fig 2: Identifying Correct Cable Routing And Padding

G04742853

Courtesy of BMW OF NORTH AMERICA, INC.

Version with air conditioning:

Remove separating net (1).
Lift out fan (2).

Fig 3: Identifying Net And Fan

G04742854

Courtesy of BMW OF NORTH AMERICA, INC.
