61 35 015 Removing and installing (replacing) control unit for Car Access System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

Unfasten plug connection (2) and disconnect.

IMPORTANT: Carefully unlock and disconnect associated plug connection for ribbon cable (1).

Replace ribbon cable (1) if

plug connection for ribbon cable (1) is damaged
control unit for Car Access System (3) is replaced

The ribbon cable leads to the IGNITION STARTER SWITCH .

Release screw (4) and remove control unit for Car Access System (3) in direction of arrow.

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

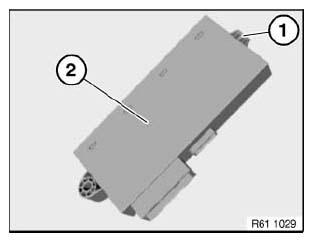

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.

Fig 2: Identifying Control Unit Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .

Version with independent heating:

Initialize all INDEPENDENT HEATING REMOTE CONTROLS .
