61 31 195 Removing and installing (replacing) front controller (from 09/2008)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage! Before dismantling it is imperative to note whether the controller is installed with a version before or after 09/2008!
NOTE:

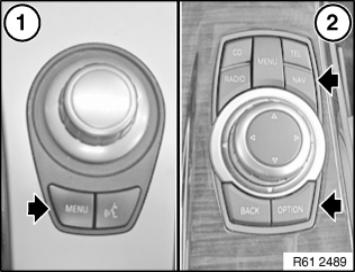

The number of buttons and shape of controller can vary depending on vehicle type.
Before 09/2008: Controller (1) has buttons on bottom only.
After 09/2008: Controller (2) has buttons top and bottom.
NOTE:
These repair instructions describe the removal and installation (replacement) of controller (2)!
IMPORTANT:
Risk of damage! The button for the controller must not be removed!
Necessary preliminary tasks:
- Remove STORAGE COMPARTMENT .
IMPORTANT:
Risk of damage!

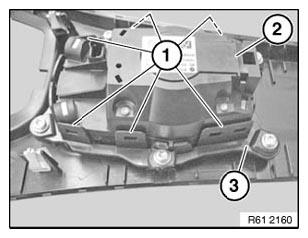

Carefully raise catches (1) on controller holder (3) and remove controller (2) towards top.
Installation note: Make sure controller (2) is correctly engaged in controller holder (3).
Replacement: Carry out vehicle programming/encoding.
