Changing Transfer Case Oil
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers in text refer to numbers in figures.

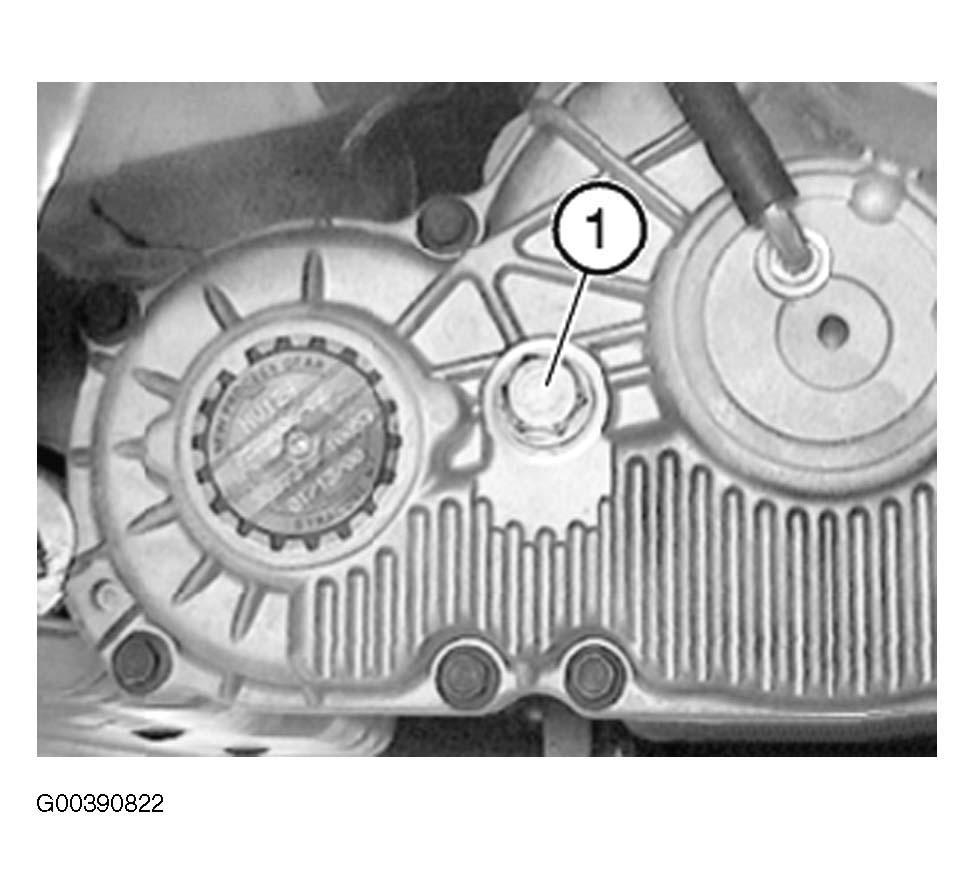

Place oil collecting apparatus underneath. Remove oil drain plug (2). Drain and dispose of gear oil. Replace sealing ring, screw in oil drain plug (2) and tighten down. See TORQUE SPECIFICATIONS . Undo oil filler plug (1). Pour in gear oil up to lower edge of opening for oil filler plug (1). See Fig 1 . Replace sealing ring.
