64 50... Install The Retrofit Absorber For The Air Conditioning Suction Line

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

The retrofit kit may be used for vehicles with a production date from 09/2008.

IMPORTANT: The retrofit kit with BMW part number 6 987 991 may no longer be used!

Necessary preliminary tasks:

Remove REAR UNDERBODY PROTECTION .

Unscrew nuts (1).

Remove the protective plate (2).

NOTE: All-wheel drive vehicle shown

Fig 1: Identifying Protective Plate And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

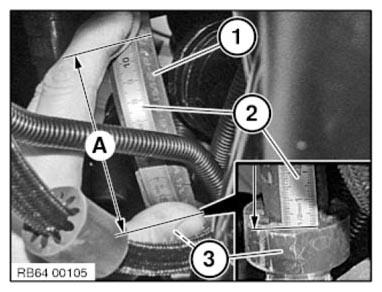

Lay the steel measuring tape (2) onto the intake pipe (1).

IMPORTANT: The steel measuring tape (2) must be flush with the bottom of the rubber ring (3)!

Mark distance A =11 cm.

Fig 2: Identifying Steel Measuring Tape On Intake Pipe And Mark Distance

Courtesy of BMW OF NORTH AMERICA, INC.

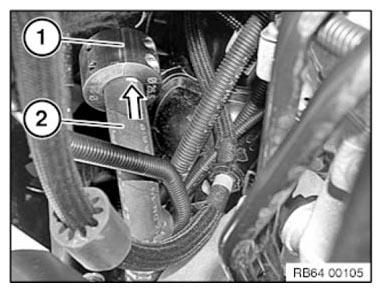

Attach the lower edge of the vibration absorber (1) at the marked position and screw it to the intake pipe (2).

Tightening torque: 8 Nm

Fig 3: Attaching Lower Edge Of Vibration Absorber And Screw To Intake Pipe

Courtesy of BMW OF NORTH AMERICA, INC.
