61 31 195 Removing and installing (replacing) front controller (replacing, without M-models to 10/2009)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage! Before dismantling it is imperative to note whether the controller is installed with a version before or after 10/2009!

NOTE: The number of buttons and shape of controller can vary depending on vehicle type.

Before 10/2009: Controller (1) has buttons on bottom only.

After 10/2009 : Controller (2) has buttons top and bottom.

NOTE: These repair instructions describe the removal and installation (replacement) of controller (1)!

Fig 1: Identifying Number Of Buttons And Shape Of Controller

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove center console trim . See 51 16 160 REMOVING AND INSTALLING/REPLACING CENTER CONSOLE TRIM (GEAR SELECTOR SWITCH) .

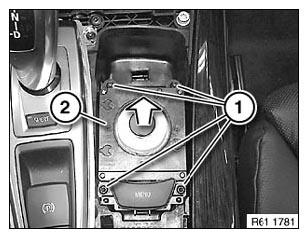

Release screws (1). Tightening torque, see 61 31 5AZ in 61 31 SWITCH .

Raise controller (2) and disconnect plug connection underneath.

Fig 2: Raise Controller (2) And Disconnect Plug Connection Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove button unit .

Carry out VEHICLE PROGRAMMING/CODING .
